Floor acoustic mat in honeycomb structural for sound reducing


Achieving acoustics is based honeycomb,its cell structure

could aborb,reflecting,consume the energy of sound vibration,

to keep noise minimum.


Achieving Acoustics - Soundproof your world



Achieving acoustics is based honeycomb,its cell structure could aborb,reflecting,consume

the energy of sound vibration, to keep noise minimum.



Features:  it is eco-friendly, lightweight,water-resistant, easy install and easy maintenance.



·Achieving coustics mat

Wildly adopted by commercial buildings, apartments, noise reduce for adjacent floors

It is a 5mm thickness mat,common size 1220*2440mm or 1150*2300mm,

Made of polycarbonate or polypropylene.density is around 70-90kg/m3,

It is laid and glued onto the floorslab’s surface, easier be bond and quickly ready for

Installation of tiles or timber flooring.



Advantage:  It is strong and flexible,not grow together like rubber for example and have air in side its cells, ventilatable and not crush,dissipating sound as it pass through the mat rather than deadening.


It is a 5mm thickness mat,common size 1220*2440mm or 1150*2300mm,

Made of polycarbonate or polypropylene.density is around 70-90kg/m3,

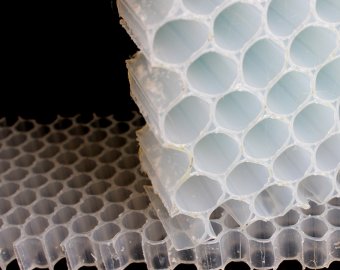

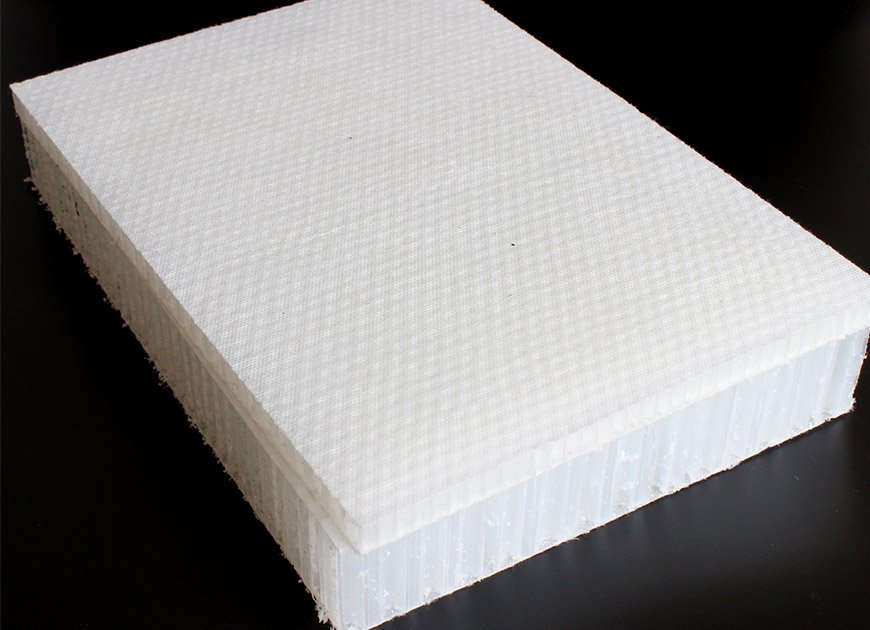

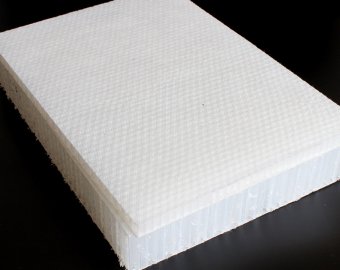

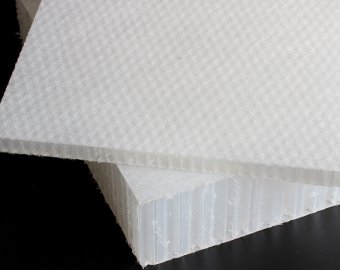

PP honeycomb with Non-woven surface
Cell size8mm10mm12mm
Thickness5mm-1000mm
Max length1220*2440mm
or
Customize
Max width
Tolerances±0.4mm
Density80Kg/m³75Kg/m³70Kg/m³
Compressive strengthGB/T1453 1.5-2
Shear strength0.5Mpa
Temperature rangeFrom - 15℃ to + 80℃
FlammabilityB2
Sound reduction Factor 50-4.000HZ22db
ColorWhite
