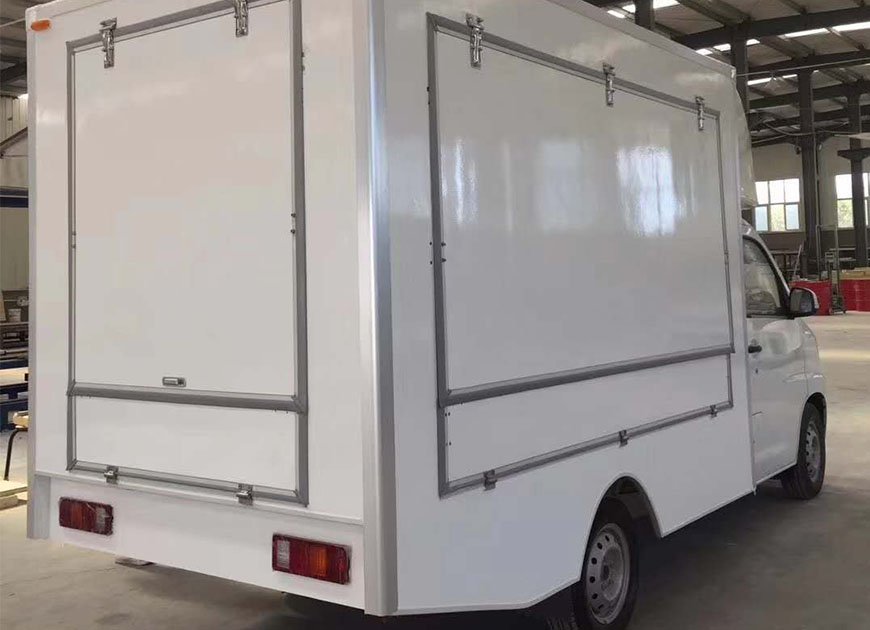

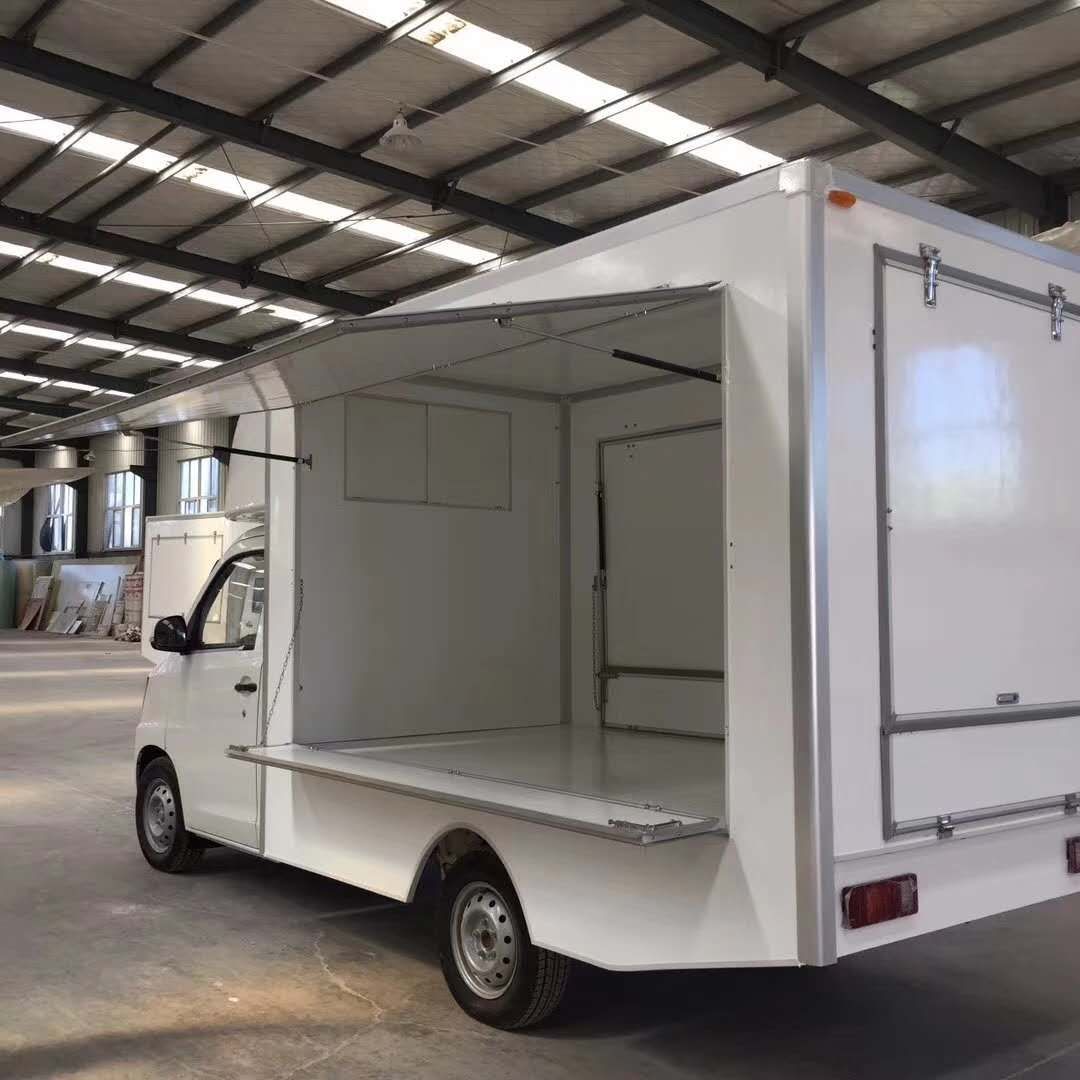

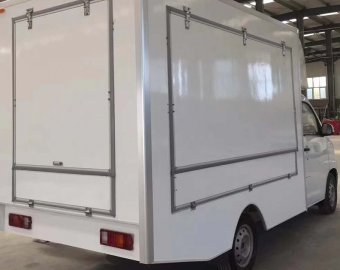

Truck Body of frp sandwich panel
light weight,insolation, stronger waterproof truck body,
Frp honeycomb truck boxes,container house wall,floor.
light weight,insolation, stronger waterproof truck body,
Frp honeycomb truck boxes,container house wall,floor.

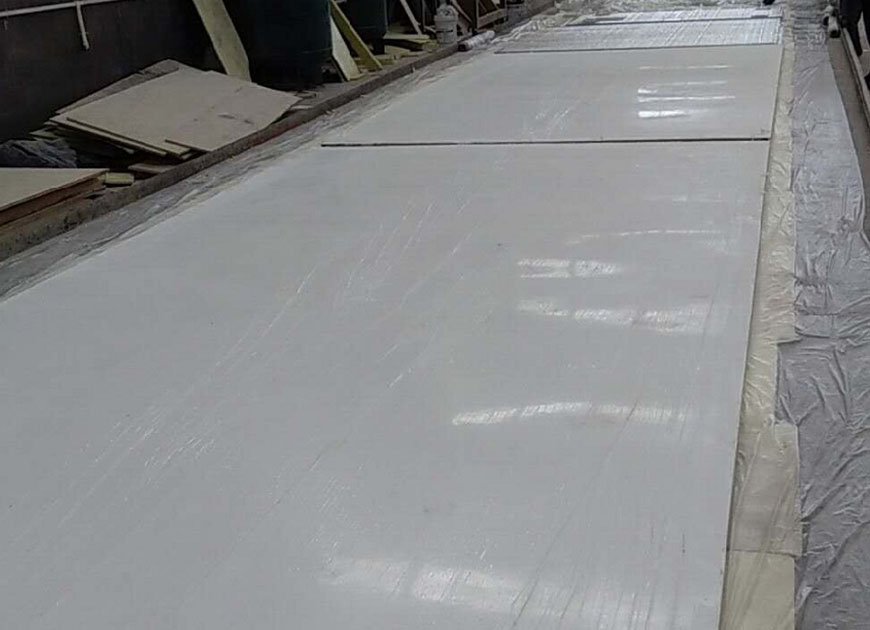

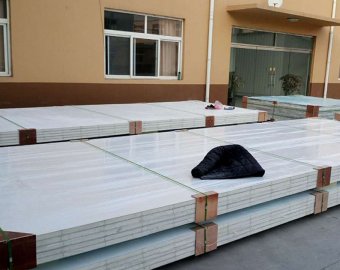

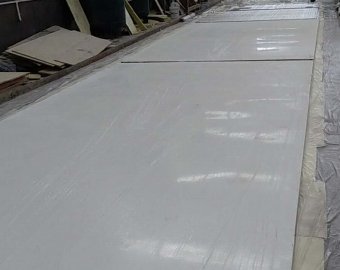

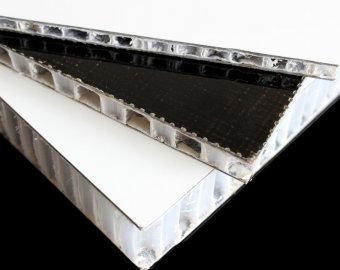

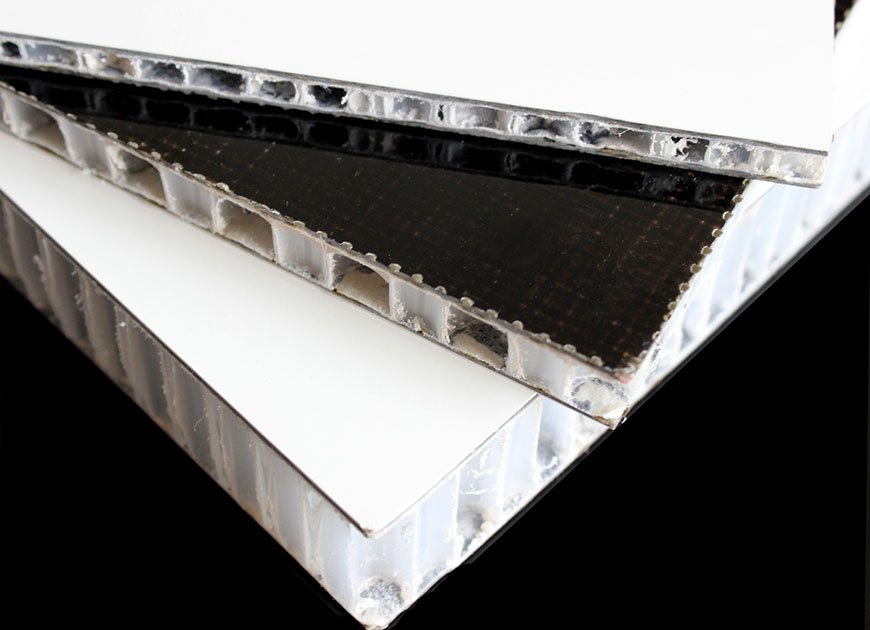

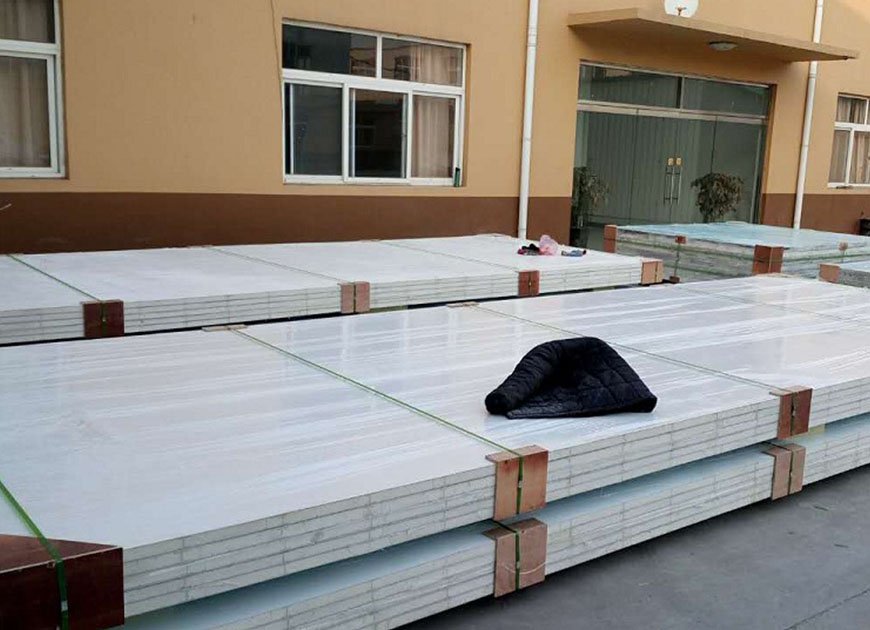

The truck body is made of sandwich struture panels, surface material is frp sheet and core material is PP honeycomb plate or foam.
It is light weight,insolation, stronger waterproof
body boxes common size are 4.2m and 6.7m long,
Wall thickness is 21mm and 30mm depands the body size.
Surface Frp sheet is 1.5mm - 3mm.
Special size is welcome to have the detail discussion to deside
if it is availabe besides the quantity above the Moq
| PP honeycomb with Non-woven surface | |||
| Cell size | 8mm | 10mm | 12mm |
| Thickness | 5mm-1000mm | ||
| Max length | 1220*2440mm or Customize | ||
| Max width | |||
| Tolerances | ±0.4mm | ||
| Density | 80Kg/m³ | 75Kg/m³ | 70Kg/m³ |
| Compressive strength | GB/T1453 1.5-2 | ||
| Shear strength | 0.5Mpa | ||
| Temperature range | From - 15℃ to + 80℃ | ||
| Flammability | B2 | ||
| Sound reduction Factor 50-4.000HZ | 22db | ||
| Color | White | ||
