Achieving acoustics is based honeycomb its cell structure could consume
the energy of sound vibration, to keep noise minimum.

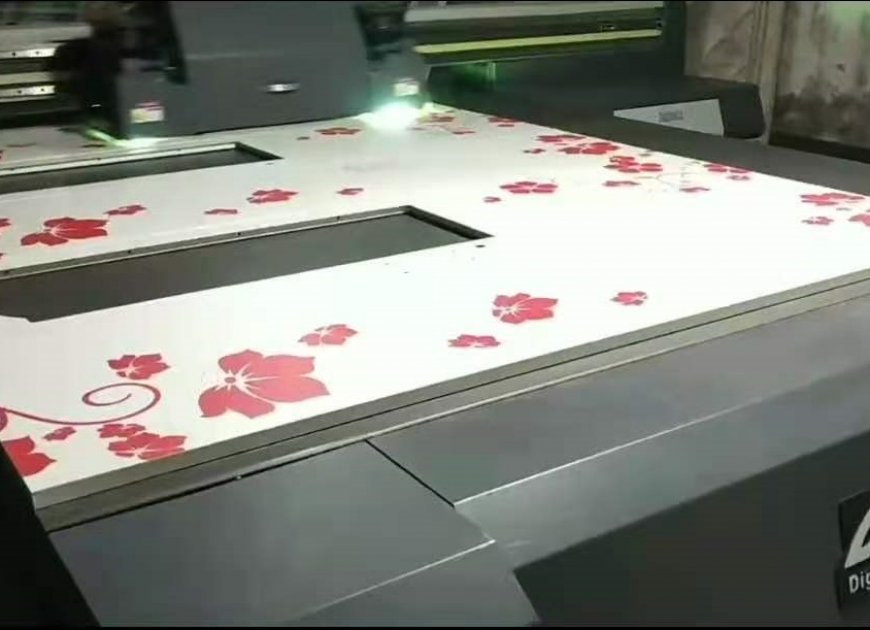

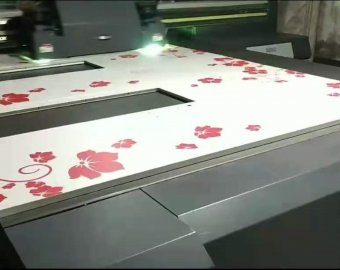

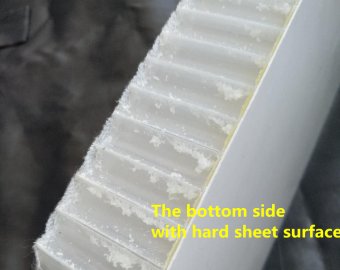

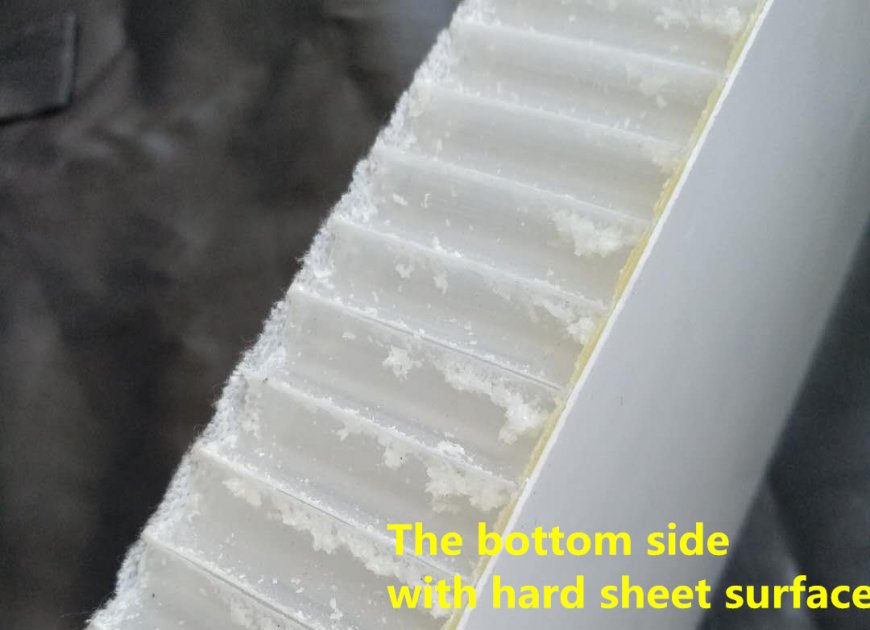

surface could be pvc/pc/veneer/Hpl/Acp/paper, etc.

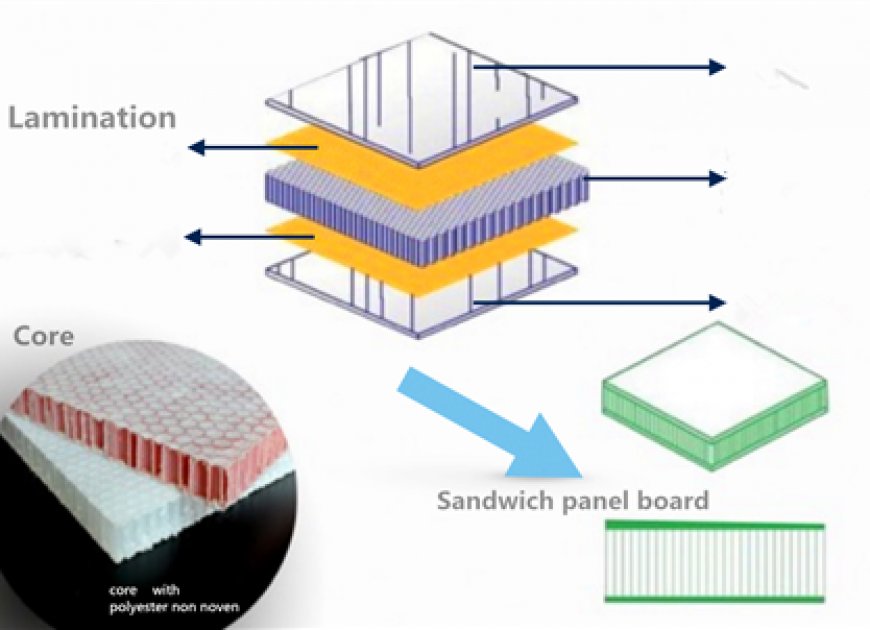

core could be honeycomb or foam honeycomb combined
Achieving acoustics is based honeycomb its cell structure could consume
the energy of sound vibration, to keep noise minimum.
surface could be pvc/pc/veneer/Hpl/Acp/paper, etc.
core could be honeycomb or foam honeycomb combined
Thickness, 20/30/60mm
Size: 600*1200mm, 1200*2400mm

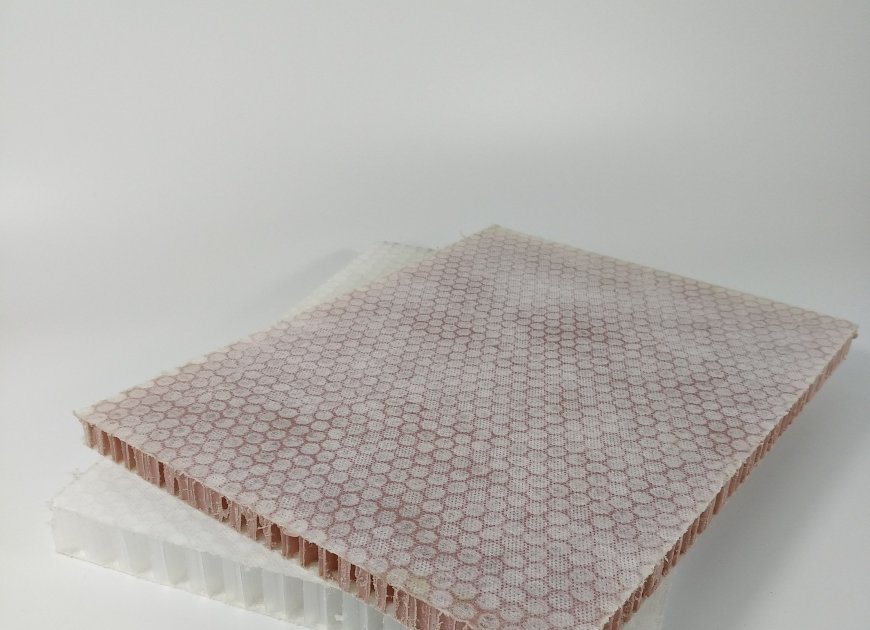

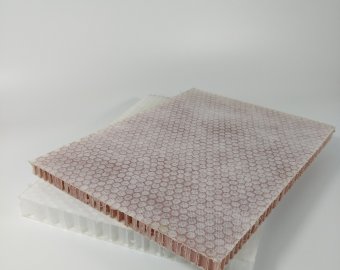

| PP honeycomb with Non-woven surface | |||
| Cell size | 8mm | 10mm | 12mm |
| Thickness | 5mm-1000mm | ||
| Max length | 1220*2440mm or Customize | ||
| Max width | |||
| Tolerances | ±0.4mm | ||
| Density | 80Kg/m³ | 75Kg/m³ | 70Kg/m³ |
| Compressive strength | GB/T1453 1.5-2 | ||
| Shear strength | 0.5Mpa | ||
| Temperature range | From - 15℃ to + 80℃ | ||
| Flammability | B2 | ||
| Sound reduction Factor 50-4.000HZ | 22db | ||
| Color | White | ||
